Testing Center
Polymer testing service is committed to professionalize it’s testing capability in Plastic, Rubber and other relevant products.
Rubber Testing Services
Rubber
| No | Equipment | Price (Bath) | Remark |
| 1 | Intermeshing mixer: compound 3 kg. | 2000 | 1 formulation |
| 2 | Compression molding | 600 | 2 slab sheet |
| 3 | Compression molding: compression set | 600 | 5 piece |
| 4 | Mooney viscometer | 500 | 1 piece |
| 5 | Moving die rheometer (MDR) | 500 | 1 piece |
| 6 | Hardness shore A | 500 | 1 piece (3 repetitions) |
| 7 | Mechanical testing machine - tensile strength | 1500 | 5 piece |
| 8 | Mechanical testing machine - tear strength | 1000 | 5 piece |
| 9 | Compression set | 50/hr | Max temperature 200 ๐C |
| 10 | Heat resistance | 50/hr | Max temperature 200 ๐C |
| 11 | Oil resistance | 100/hr | Max temperature 150 ๐C (Include Fuel) |
| 12 | Freezer | 25/hr | Min temperature -40 ๐C, 24 hr |
| 13 | QUV | 25/hr | Temperature 50 ๐C |
| 14 | Ozone resistance | 60/hr | 2 piece |
| 15 | Specific gravity | 500 | 1 piece |
| 16 | DIN abrasion | 1500 | 3 piece |
| 17 | Vertical rebound testing | 500 | 3 piece |
| 18 | Bloom testing | 1000 | 3 piece |
| 19 | Friction testing | 500 | 2 piece |
| 20 | Electrical resistance | 500 | 2 piece |
| 21 | Low temperature brittleness | 2000 | Min temperature -60 ๐C , 5 piece |
| 22 | Carbon dispersion | 1000 | 1 piece |
| 23 | FTIR | 1500 | 1 piece |
| 24 | DMA | 2000 | 1 piece (Min 5 pieces/time) |
| 25 | Volume change, weight | 1000 | 3 piece |
Plastic Testing Services
plastic
| No | Equipment | Price (Bath) | Remark |
| 1 | Twin screw extruder : compound 10 kg. | 5000 | 1 formulation |
| 2 | Injection molding | 3000 | 10 set : Tensile, Impact, Flexural |
| 3 | Single screw extruder : compound 5 kg | 3500 | 1 formulation |
| 4 | Compression molding | 600 | 1 slab sheet (20x30 cm) |
| 5 | Mold shrinkage by injection molding | 500 | 1 piece (100x240x2 mm) |
| 6 | Dying before injection molding | 60/hr | Maximum temperature 100 ๐C |
| 7 | Melt flow index | 600 | 1 sample (3 repetitions) |
| 8 | Capillary rheometer | 1500 | 1 formulation |
| 9 | Hardness shore D | 500 | 1 piece (3 repetitions) |
| 10 | Universal testing machine – tensile strength | 1500 | 5 piece |
| 11 | Universal testing machine – flexural strength | 1500 | 5 piece |
| 12 | Impact strength @ room temperature | 2000 | 5 piece |
| 13 | Specific gravity | 500 | 1 piece |
| 14 | HDT VICAT @ deflection of plastic | 2500 | Maximum temperature 200 ๐C |
| 15 | Moisture content | 500 | 1 sample |
| 16 | Ash content (Solid content) | 700 | 1 sample |
Testing Service List
| Test Item | Machine | Test Method | ||
| ASTM | JIS | ISO | ||
| Mooney viscosity | Mooney Rheometer | D 1646 | K 6300 | |
| Curing properties | ODR/Pressurized foam Rheometer | D 5289 | K 6300 | 6502 |
| Shear stress & Shear rate | Capillary Rheometer | D 3835 | 11443 | |
| Hardness | Durometer | D 2240 | K 6253 | 7619 |
| Tensile properties | Universal Testing Machine (UTM) | D 412 | K 6251 | 37 |
| Tear strength | D 624 | K 6252 | 34 | |
| Coefficient of friction | D 1894 | 8295 | ||
| Adhesion strength | D 429 | |||
| Compression set | Gear Aging Oven | D 395 | K 6262 | 815 |
| Heat resistance | Gear Aging Oven | D 573 | K 6257 | 188 |
| Fluid resistance | Oil Immersion | D 471 | K 6258 | 1817 |
| Specific gravity | Densimeter | D 792 | K 6268 | 2781 |
| DIN abrasion | DIN abrasion tester | D 5963 | K 6264 | 4649 |
| Ozone resistance | Ozone tester | D 3395 | K 6259 | 1431 |
| Flammability | Flammability Tester | FMVSS 302 | ||
| Yellowing Resistance | QUV Accelerated Weathering Tester | D 1148 | 4892 | |
| Fluorescent UV Exposure | D 4329 | |||
| Blooming | Blooming tester | |||
| Hydrolysis | Hydrolysis tester | SATRA TM 344 | ||
| CIE L*a*b* (color scale) | Spectrophotometer | D 2244 | ||
| Vertical rebound resilience | Resilometer Vertical Rebound | D 2632 | K 6255 | |
| Electrical resistance | Electrometer | D 257 | ||
| Brittleness low temperature resistance | Brittleness Temperature Tester | D 746 D 2137 | K 6261 | 812 |
| Melt flow index | Melt flow indexer | D 1238 | 1133 | |
| Tensile properties | Universal testing machine | D 638 | K 7161 | 527 |
| Compressive properties | D 695 | K 7181 | 604 | |
| Flexural properties | D 790 | K 7171 | 178 | |
| Impact resistance | Impact tester | D 256 | K 7110 | 180 |
| Heat Deflection Temperature | Heat distortion temperature | D 648 | 75 | |
| Vicat Softening Temperature | D 1525 | 306 | ||
| Glass transition temperature, Tg | Dynamic mechanical analysis | |||
| Storage modulus and Loss modulus | K 6394 | 4664 | ||

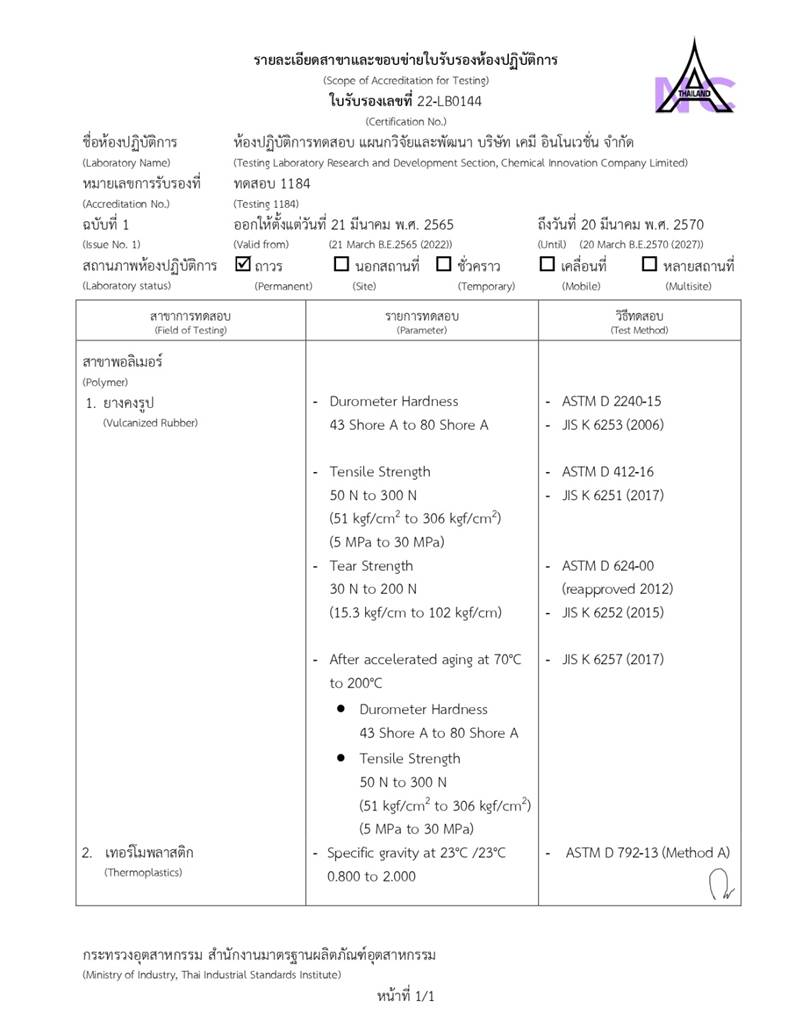

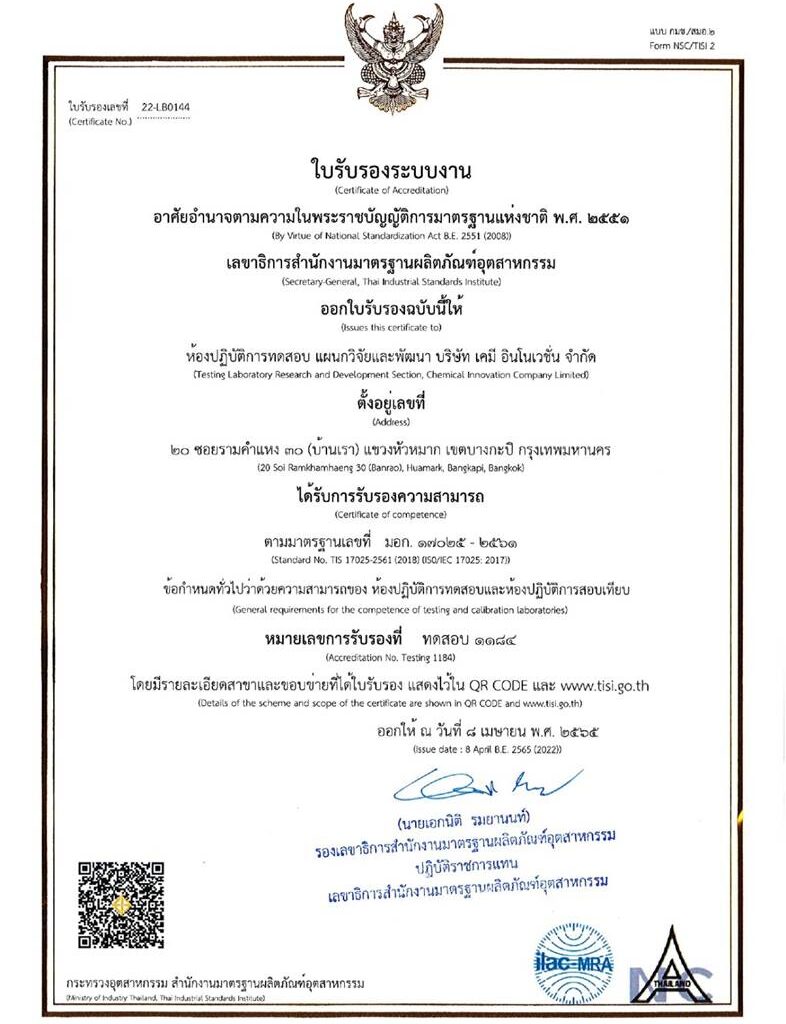

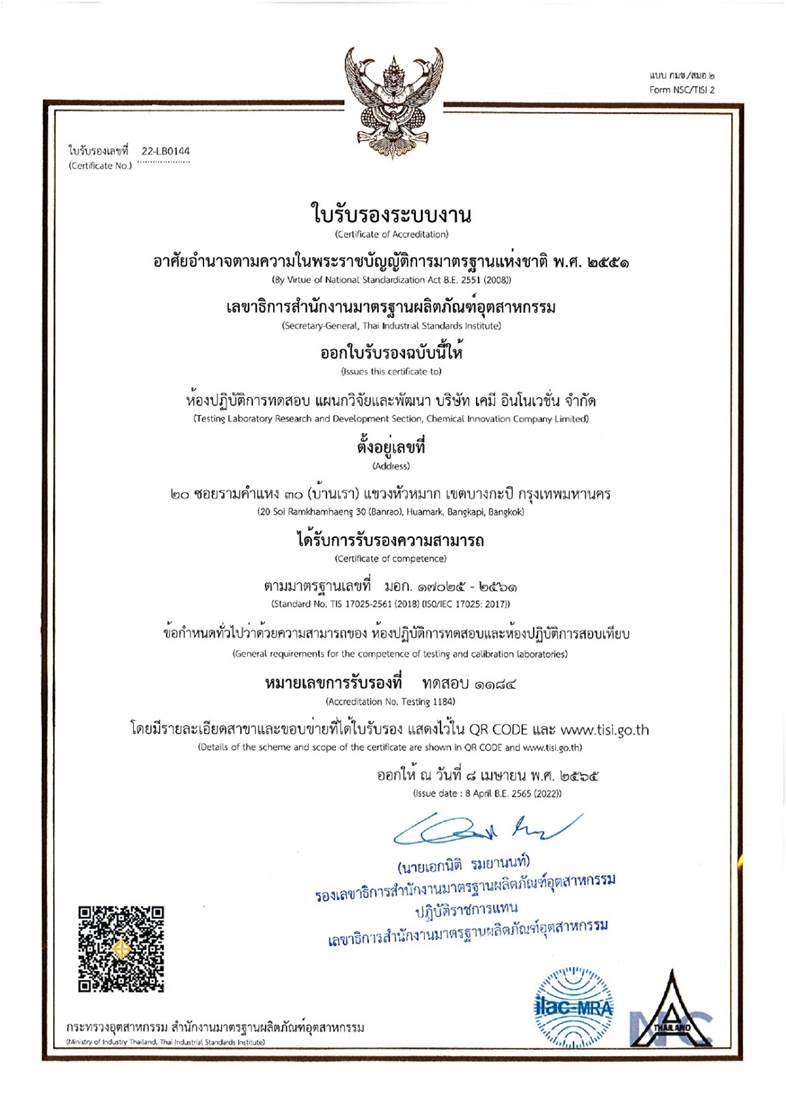

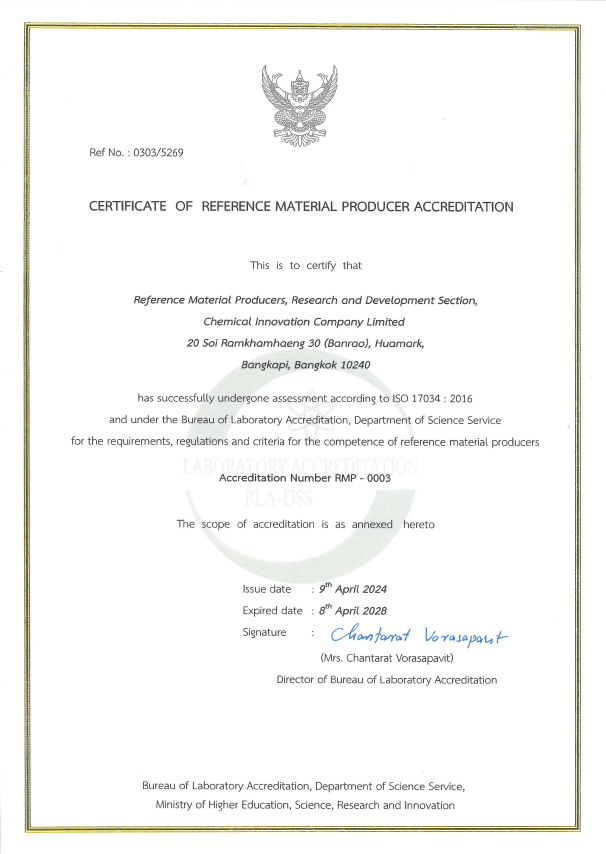

Certificate
